3D CONCEPTS

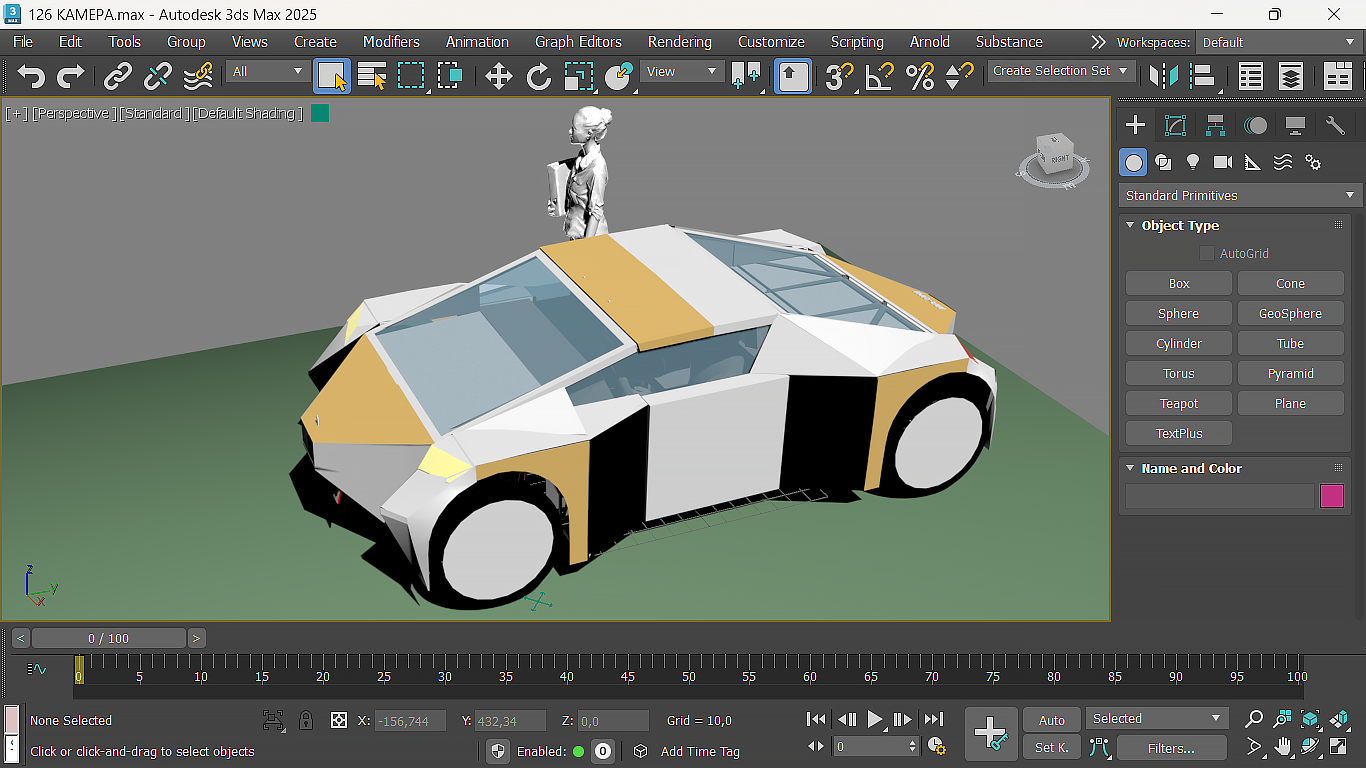

Compact amphibious electric car without doors

Lightweight aluminum, corrosion-resistant frame, constructed from standart profiles.

The main structural element is the frame. The vehicle has no doors, allowing the body to achieve exceptional structural strength and torsional rigidity.

Entry and exit are through the movable roof, which retracts completely into the rear section of the vehicle.

The seats rise automatically, making entry and exit easier.

Pedal-free driving: all vehicle controls are operated solely through the steering wheel.

Two-seater. The seats can slide/recline backward and transform into beds.

Dimensions: 330 × 170 × 100 cm.

Weight: approximately 150–200 kg, including batteries.

Total power of the four electric motors, driving all four wheels: 4 to 40 kW.

The frame is hermetically sealed and positively buoyant, allowing the vehicle to float.

The aerodynamics are designed to generate downforce without spoilers or wings, using specially designed air ducts.

The entire construction is fully modular.

All four wheels, including their suspension assemblies, are identical and interchangeable.

Different modules can be added or removed, allowing the vehicle to be upgraded and customized—for example, the front and rear sections can be modified to improve aerodynamics or off-road capability.

The front and rear windshields are identical and interchangeable.

The front and rear sections are deformable, identical, and interchangeable. They can also serve as storage compartments.

All four fenders are identical and interchangeable.

The vehicle can travel at nearly the same speed both forward and in reverse.

All four wheels are steerable.

The core philosophy: maximum simplicity, strength, lightness, and low cost.

The motto:

“Buy it once. Improve and evolve it for decades.”

In practice, this means:

A FOREVER CAR — A VEHICLE BEYOND TIME.

Designed to outlive its manufacturer.

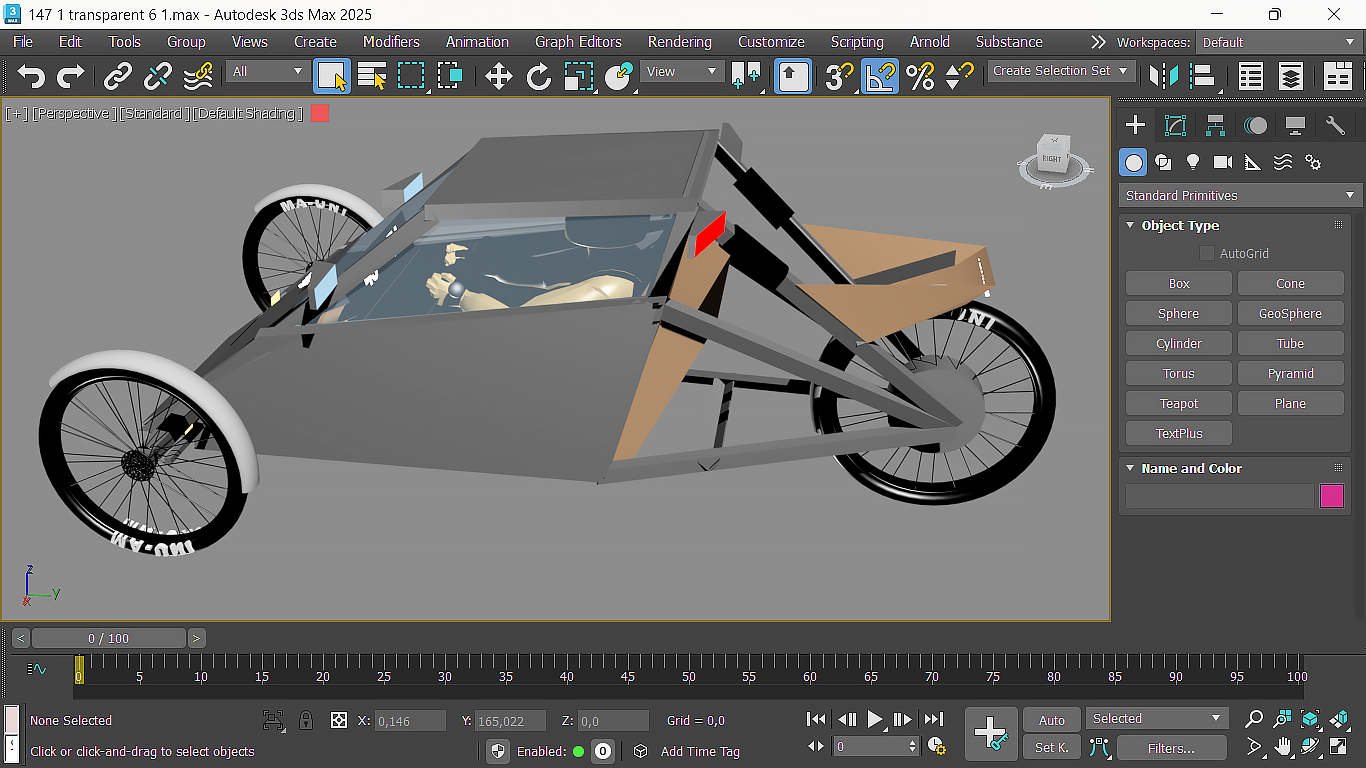

Single-seater electric ultra-light amphibious trike

Dimensions: approximately 250 × 170 × 100 cm.

Weight: approximately 50–70 kg, including batteries.

Rear hub motor drive.

Power: 1–10 kW, depending on the modification.

One enclosed, hermetically sealed driver’s cabin, providing protection from water and weather.

One open passenger seat positioned directly behind the driver, outside the enclosed cabin.

The vehicle can float with the addition of two lightweight pontoons.

The entire vehicle is fully modular, built around an aluminum chassis.

The vehicle can be completely disassembled and reassembled as a KIT.

The rear wheel and suspension assembly can be removed in about one minute, allowing the entire vehicle to be stored even inside a room.

The core philosophy: maximum simplicity, lightness, and low cost.

Practically FOREVER.

Designed to outlive its manufacturer.
